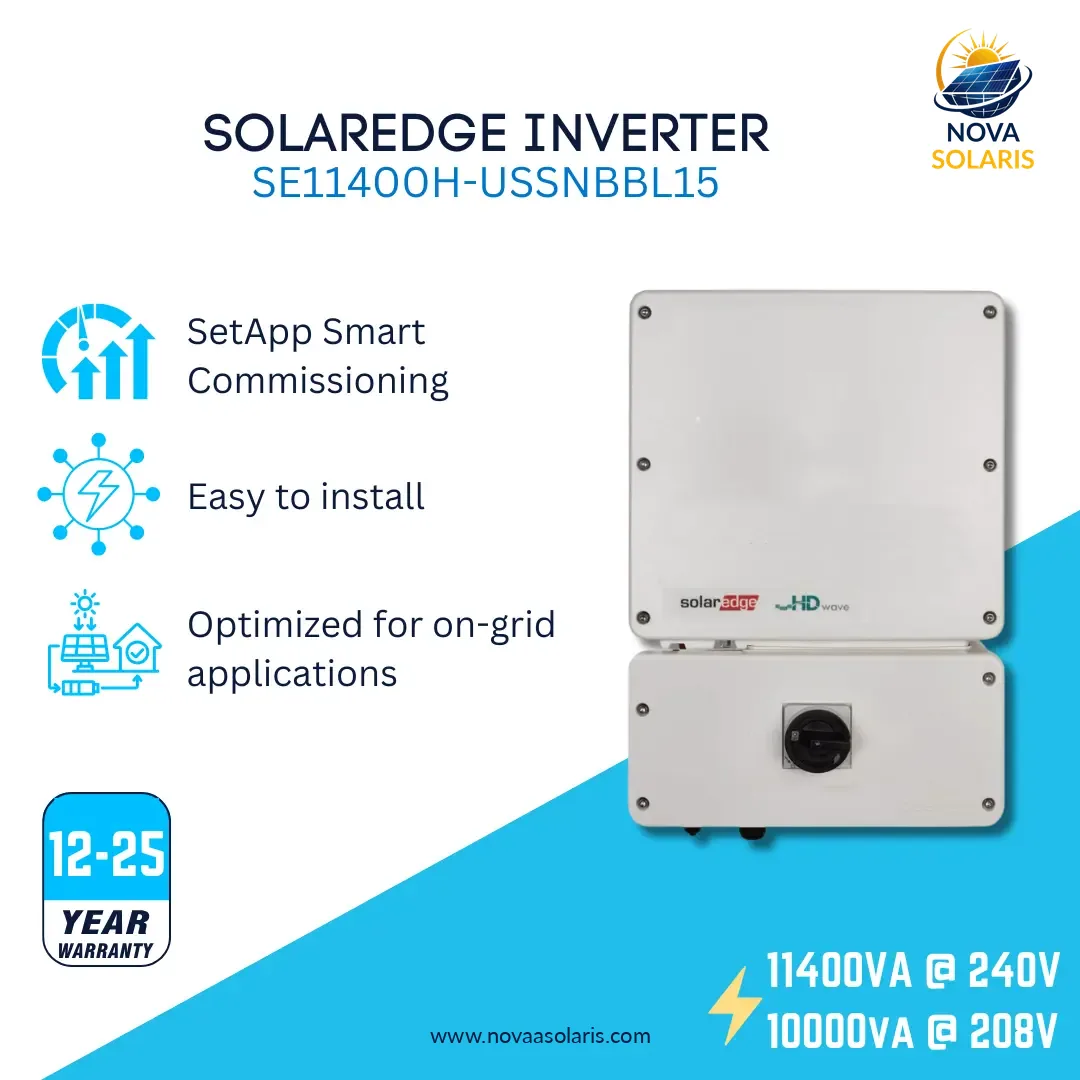

SolarEdge SE11400H-USSNBBL15 Energy Hub Inverter with HD-Wave Technology
SKU: SE11400H-USSNBBL15
- Product Type: Home Hub Inverter
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description
SolarEdge Energy Hub Inverter with HD-Wave Technology SE11400H-USSNBBL15
Specifically designed to work with power optimizers.
Record-breaking efficiency
Fixed voltage inverter for longer strings
Integrated arcfault protection and rapid shutdown for NEC 2014 and 2017, per article 690.11 and 690.12
UL1741 SA certified, for CPUC Rule 21 grid compliance
Extremely small
Built-in module-level monitoring
Outdoor and installation
Optional: Revenue grade date, ANSI C12.20 Class 0.5 (0.5% accuracy)
Technical Specifications
- Rated AC Power : 11400 @ 240V / 10000 @ 208V
- Max AC Power: 11400 @ 240V / 10000 @ 208V
- Max DC Power 240V: 17650W
- Max DC Power 208V: 15500W
- Max Input Current @ 240V: 30.5Adc
- Max Input Current @ 208V: 27
Resources
Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@novaasolaris.com for file request.
Warranty
12 Years Warranty
