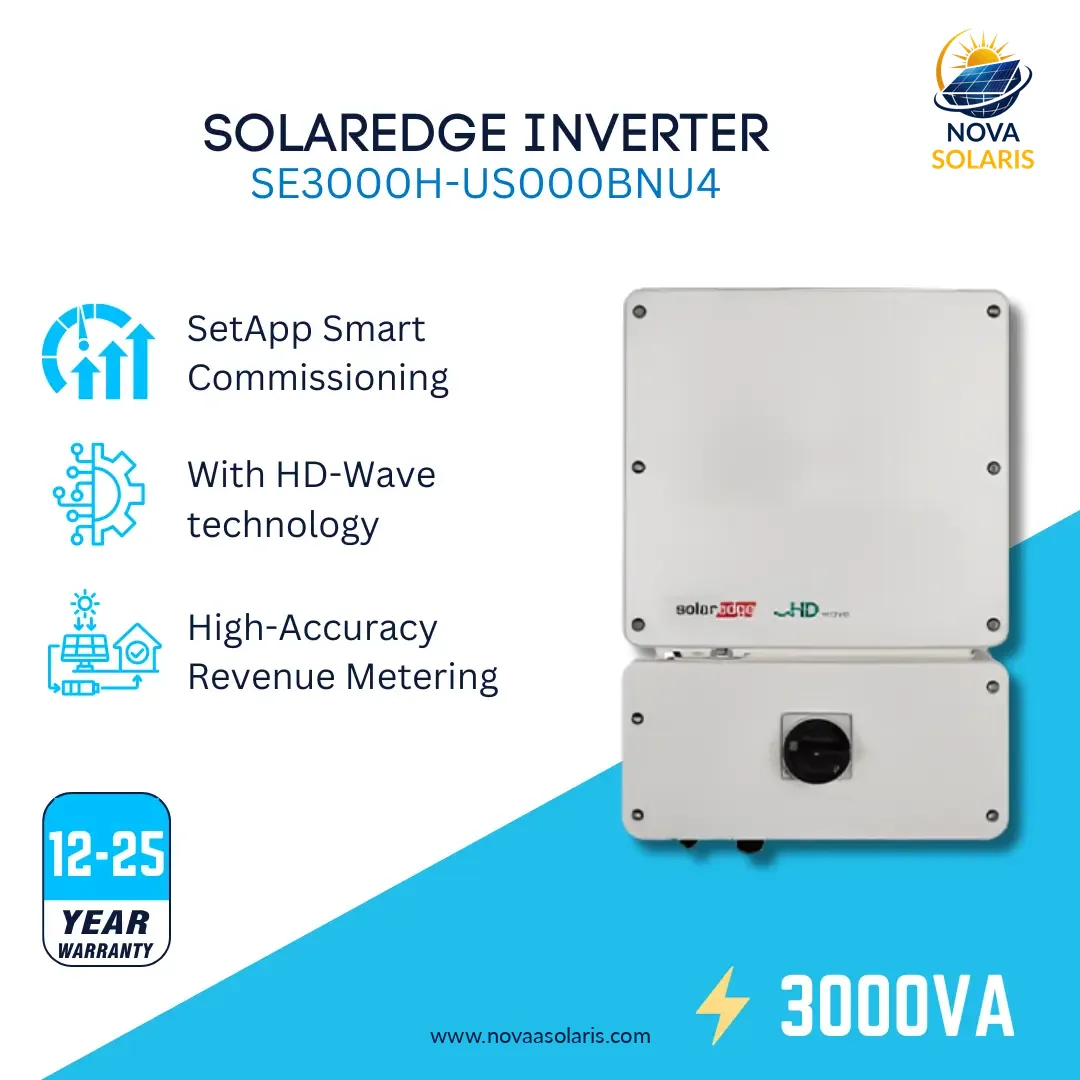

SolarEdge Single Phase Inverter with HD-Wave Technology, 3.0kW, Inverter with SetApp configuration
SKU: SE3000H-US000BNU4
- Product Type: Single Phase Inverter
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description
SolarEdge SE3000H-US000BNU4 3kW 240VAC Single Phase String Inverter w/ Setapp HD-Wave Technology & AFCI
The SolarEdge SE3000H-US000BNU4 single phase inverters now have a smart new commissioning method that is done directly through a smartphone using their intuitive SetApp mobile application. Inverter commissioning has never been so easy. All the information you need is in the palm of your hand so the display screen is no longer necessary! Download the SetApp application on your mobile device today.
Technical Benefits
- Built-in Module-Level Monitoring
- Indoor and Outdoor Installation
- Less Heat and High Reliability Without Any Electrolytic Capacitors
Technical Specifications:
- Technology: Single Phase String Inverter
- Dimensions: 17.70 x 14.60 x 6.80 inches
- Weight: 22.00 lbs
- Noise: < 25dBA
- Cooling: Natural Convection
- AC Output Conduit Size: 3/4" Minimum / 14-6 AWG
- DC Output Conduit Size: 3/4" Minimum / 1-2 Strings / 14-6 AWG
- Protection Rating: NEMA 4X (Inverter with Safety Switch)
- Rated AC Power Output: 3000VA
- Maximum AC Power Output: 3000VA
- AC Output Voltage: Minimum: 211VAC; Nominal: 240VAC; and Maximum: 264VAC
- AC Frequency (Nominal): Minimum: 59.30Hz; Nominal: 60.00Hz; and Maximum: 60.50Hz
- Maximum Continuous Output Current @240V: 12.50 Amps
- GFDI Threshold: 1
- Utility Monitoring, Islanding Protection, County Configurable Set Points: Yes
- Maximum DC Power: 4650 Watts
- Transformer-Less Ungrounded: Yes
- Maximum Input Voltage: 480VDC
- Nominal DC Input Voltage: 380VDC
- Maximum Input Current @240V: 8.50ADC
- Maximum Input Short Circuit Current: 45ADC
- Reverse-Polarity Protection: Yes
- Ground-Fault Isolation Detection: 600kΩ Sensitivity
- Maximum Inverter Efficiency: 99%
- CEC Weighted Efficiency: 99%
- Night-Time Power Consumption: < 2.5 Watts
Resources
Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@novaasolaris.com for file request.
Warranty
✔️ Warranty
