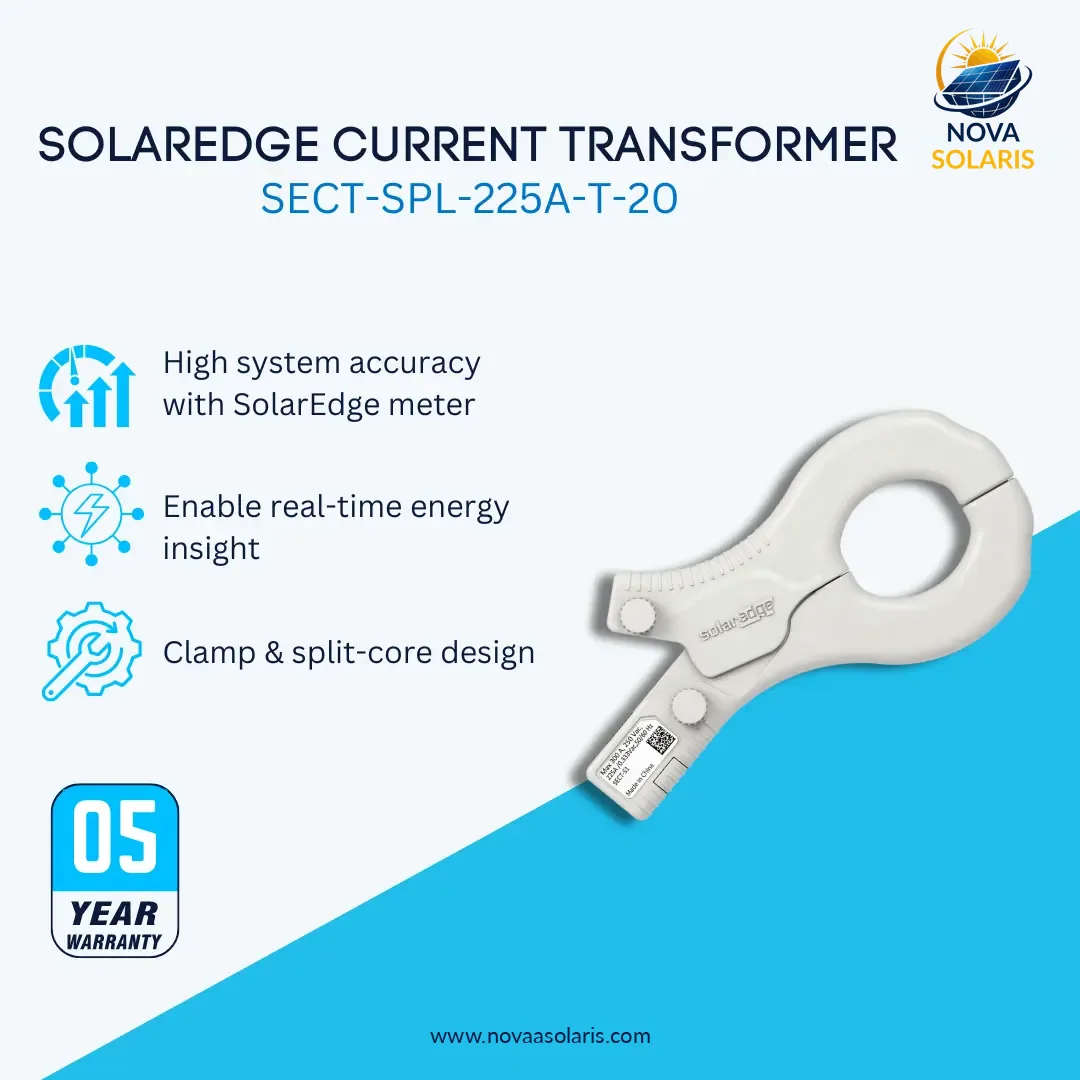

SolarEdge SECT-SPL-225A-T-20 225A Slim Current Transformer
SKU: SECT-SPL-225A-T-20
- Product Type: Monitoring Accessory
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description
SolarEdge 225A Slim Current Transformer
Boosts customer satisfaction by enabling real-time energy insight for greater electricity savings
Increases installer revenue by creating more opportunities to expand system size or add smart capabilities like batteries, EV charging and smart energy devices
High system accuracy (with SolarEdge meters) of +1.25%
Clamp and split-core design, with single-handed installation
Supports CT paralleling, enabling measurements of more load conductors
Includes 17ft twisted pair cable, eliminating need for extension cable and additional labor when installing inverters with built-in consumption meter
Simplified support and logistics with a single vendor
Technical Specifications
- Accuracy (1%-100% of Rated Current): ±1 %
- CT Phase Angle (10%-100% rated current): <±2.0 Degrees
- Nominal Line Frequency: 60/50 Hz
- Current Rating: 225 (@ 600 Vac) A
- Output Voltage: 0-333 mVac
- Overvoltage Category: CAT III 600V Vac
- Maximum Primary Conductor Gauge: 300 kcmil
- Maximum Continuous Amps: 300 A
- Dimension (H x W x L): 99 x 12.5 x 4 mm
- Weight: 0.46 lbs
Downloads

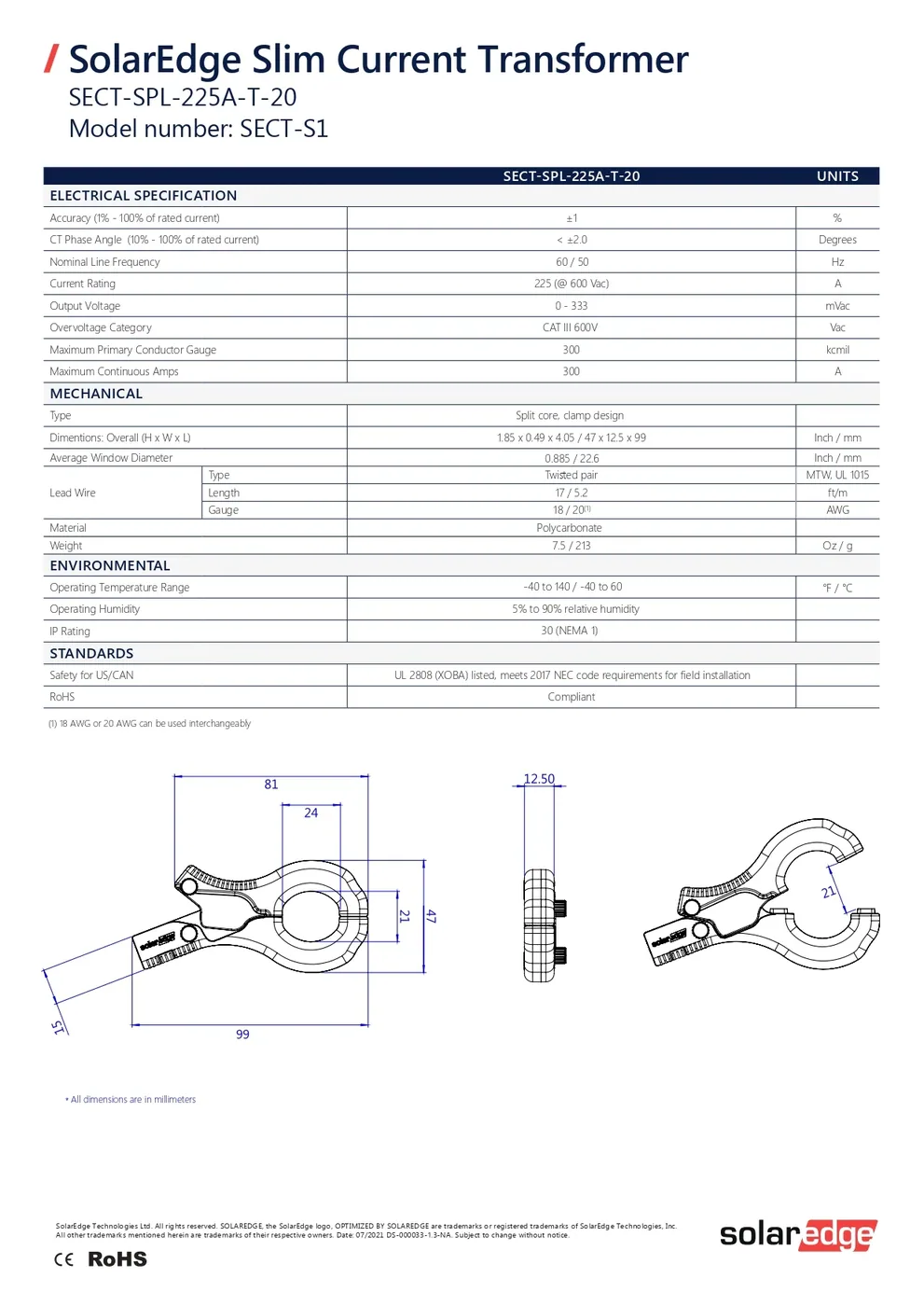

Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@novaasolaris.com for file request.
Warranty
5 Year Warranty
